Catch What You've Missed

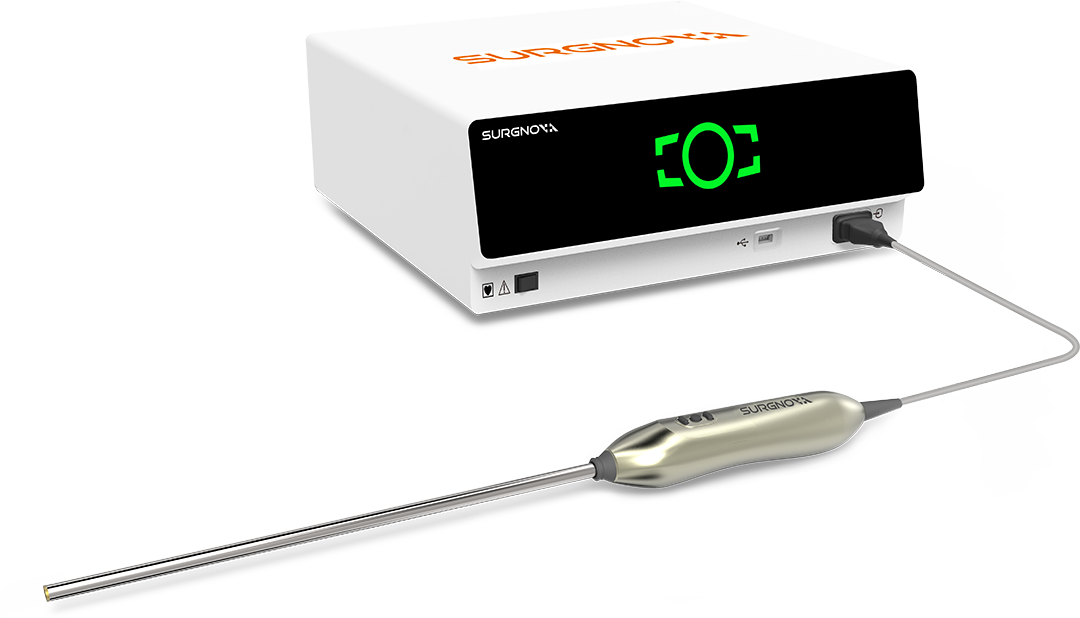

DeepEye™ EVS100
2D Video Endoscopy System
DeepEye™ 2D Video Endoscopy System provides world-leading compact and portable system with Fog-proof Capability. Thanks to the integrated design, the system brings more operation convenience, space-saving, and lower maintenance need.
Document
Catch What You've Missed
  • Full HD 1920*1080P

  • 3X Digital Zoom with Image Enhancement Algorithm

  • Built-in Video Recording and Picture Capturing

  • Built-in Light Source, No Need for External Light Source and Fiber Cable

  • All System Functions Are Controlled with Laparoscope Handle

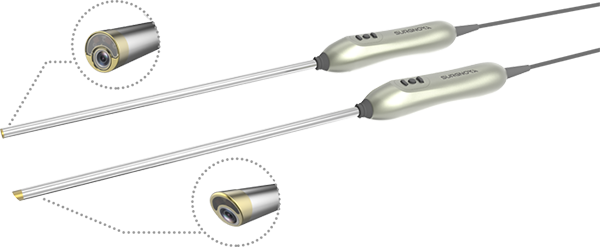

Fog-Proof Function
  • Unique Fog-Proof Function

  • Integrated Endoscope Design

  • Chip-On-Tip Electronic Imaging

  • All System Functions Are Controlled with Laparoscope Handle

  • Ergonomic Handle Design

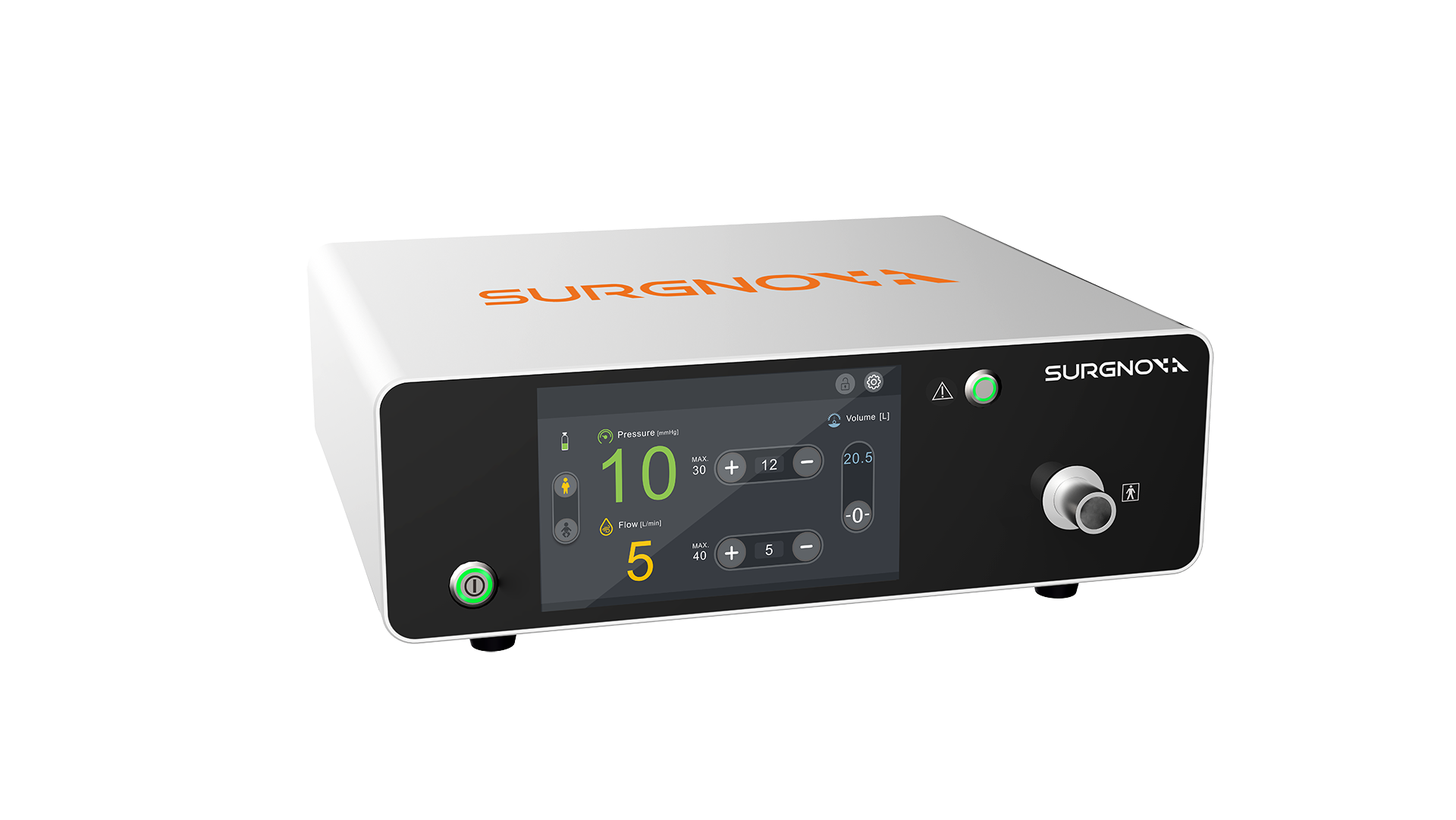

GVS200 Gas Insufflator
  • Gas Heating Function

  • Maximum 40L/Min Inflation Speed

  • Full Touch Screen Design

  • Gas Overpressure Protection Function

Unmatched Clinical Performance

ItemsVideo Endoscopy Processor (Camera Control Unit)
ModelEVS100
Product appearance DescriptionSize: L430mm*W425mm*H180mm
Net Weight: 10.5kg
RevolutionFull HD 1920*1080P
Video Output Port2X DisplayPort, 1X HDMI, 2X DVI-D
Control Port2X USB for Keyboard and Mouse, 1X RJ45 Ethernet
Built-in StorageUp to 100 Hours Full HD Video Recording
Frame rate60FPS


ItemsEndoscope
ModelLPS21000LPS21030
Maximum insertion portion width10mm10mm
Working length345.5mm348.2mm
Direction of view30°
Field angle91°(Diagonal)85°(Diagonal)
Depth of field20-120mm20-120mm
Sterilization WayExhaust steam sterilizationExhaust steam sterilization


ItemsGas Insufflator
ModelGVS200


ItemsModel
CartMpcart
