Multi-functional Energy Platform with Excellent Performance

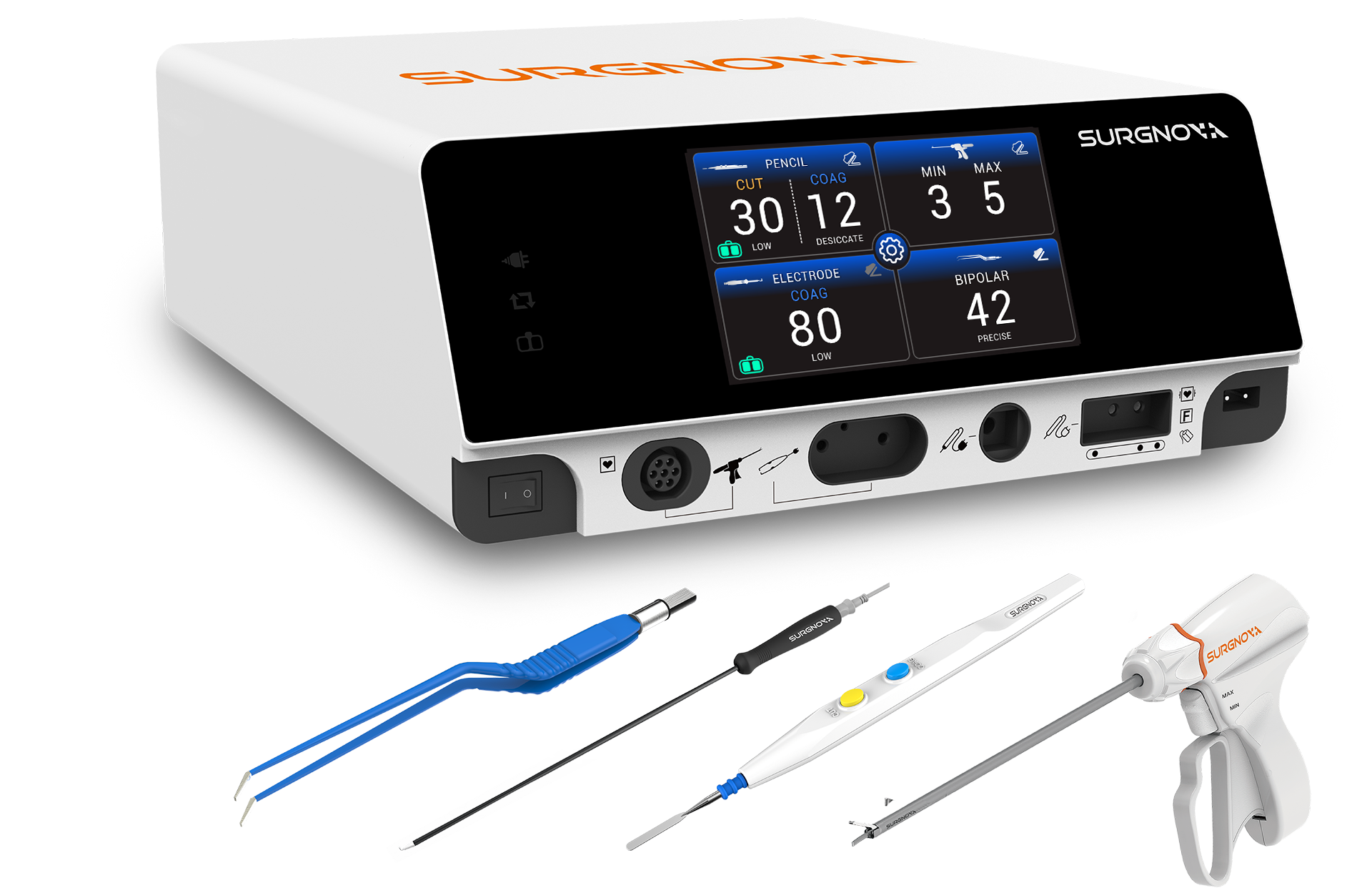

VariCure™ SC300ES
Ультразвуковая хирургическая и электрохирургическая система

VariCure™ Ultrasonic & Electrosurgical System, a surgical energy platform that integrates ultrasonic, mono-polar pencils, bi-polar forceps and hooks into one system, providing a total solution in cost effective manner to address challenges in tissue dissection and coagulation in both endoscopic and open procedures.

Document

Multi-functional Energy Platform with Excellent
Performance

A System Combining Ultrasonic and Electrosurgical Modules
Multiple Instruments Available for Surgical Treatments
High Performance in Tissue Cutting, Tissue Coagulation, and Blood Vessel Closure
Ten Working Modes for Different Clinical Needs
Simple-to-use Design with Touch Screen

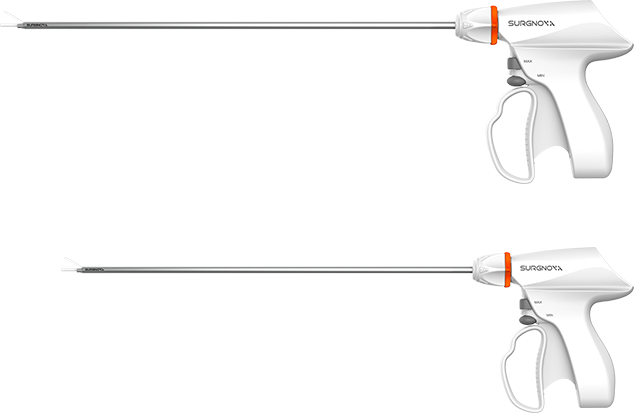

Ultrasonic Scalpel Mode

High Frequency Signal Tracking and Tissue Adaptive Technologies
Cutting Completion Indicating Tone
Superior Dissection Speed
Solid Hemostasis Capability
Minimal Thermal Damage
Multiple Scalpel Sizes for Open and Laparoscopic Procedures

Electrosurgical Mode

Real-time Energy Sensing Technology, Accurately and Quickly Adapt to Energy
Nine Working Modes for Different Clinical Needs
Dual Monitoring Function for Accurate and Instant Signal Feedback
CQM Monitoring Technology

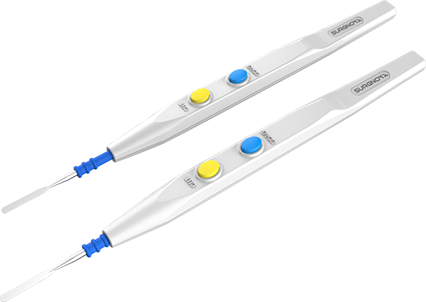

Electrosurgical Pencil

Quick and Precise Dissection and Vessel Sealing
Superb Hemostasis Capability
Minimal Thermal Damage
Unique Blunt Blade for Smooth Cutting and Precise Incision Control

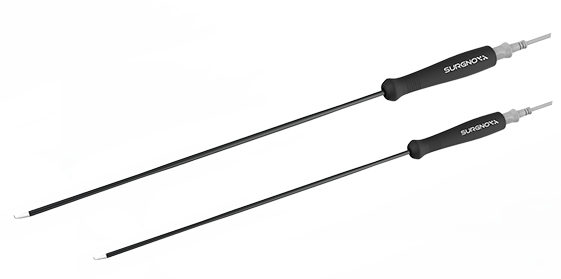

Laparoscopic Hook

Excellent Monopolar Dissection and Hemostasis Performance
High Quality Material, Less Sticky at Tip

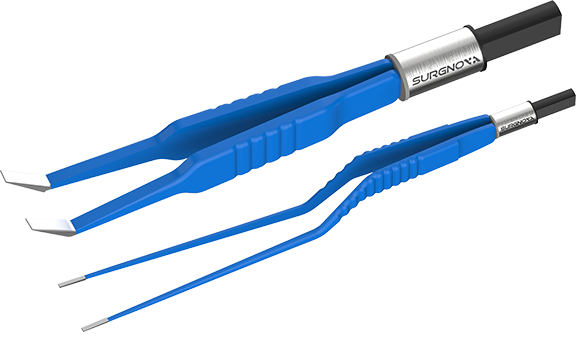

Bipolar Coagulation Forceps

Light Weight and Easy to Operate
Superior Safety, Precision and Efficacy
Consistent Performance Over A Range of Tissue Thickness

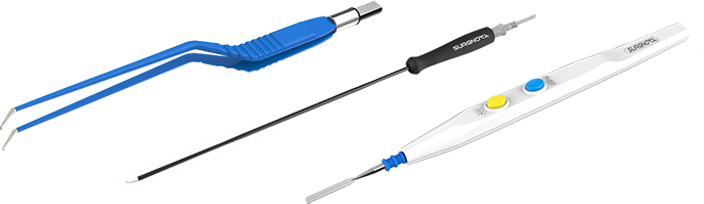

Instruments

The System Supports Multiple Surgical Instruments, Including Ultrasonic Scalpel, Mono-polar Pencil, Laparoscopic Hook and Bipolar Coagulation Forceps.

Generator Ultrasonic Scalpel Module Accessory Composition Electrosurgical Module Accessory Composition Accessories

Items	Model
Ultrasonic Surgical & Electrosurgical Generator	SC100ES
	SC200ES
	SC300ES
	SC200
	ES100
	ES200
	ES300

Items	Model	Description
Ultrasonic Transducer	SC100T	Ultrasonic Transducer
Ultrasonic Scalpel	SC13C	Ultrasonic Scalpel；Shaft Length:13cm
	SC21C	Ultrasonic Scalpel；Shaft Length:21cm
	SC35C	Ultrasonic Scalpel；Shaft Length:35cm
	SC43C	Ultrasonic Scalpel；Shaft Length:43cm

Items	Model	Description
Electrosurgical Pencil	SCPen	Electrosurgical Pencil
Electrosurgical Electrode	SCPenK0069	Knife shape;Length:69mm;Thickness:0.5mm;Width:2.3mm
	SCPenK0150	Knife shape;Length:150mm;Thickness:0.5mm;Width:2.3mm
	SCPenN0069	Needle shape;Length:69mm;Diameter of the needle tip:0.8mm
	SCPenN0150	Needle shape;Length:150mm;Diameter of the needle tip:0.8mm
	SCPenB0140-1	Ball Shape;Length:140mm;Diameter of the ball:5mm
	SCPenB0140-2	Ball Shape;Length:140mm;Diameter of the ball:3mm
Laparoscopic Electrode	SCHookL0330	L Type Hook;Length:330mm;Outside Diameter:5mm
Laparoscopic Electrode	SCHookL0450	L Type Hook;Length:450mm;Outside Diameter:5mm
Bipolar Coagulation Forceps	SCForceps0115-1	Handle Shape:Straight;Electrode Length:115mm; Electrode Thickness:Straight:0.3mm
	SCForceps0115-2	Handle Shape:Straight;Electrode Length:115mm; Electrode Thickness:Straight:0.7mm
	SCForceps0115-3	Handle Shape:Straight;Electrode Length:115mm; Electrode Thickness:Curved:0.7mm
	SCForceps0115-4	Handle Shape:Gun Shape;Electrode Length:200mm; Electrode Thickness:Curved:0.7mm
	SCForceps0200-1	Handle Shape:Gun Shape;Electrode Length:200mm; Electrode Thickness:Straight:0.3mm
	SCForceps0200-2	Handle Shape:Gun Shape;Electrode Length:200mm; Electrode Thickness:Straight:0.7mm
	SCForceps0200-3	Handle Shape:Gun Shape;Electrode Length:200mm; Electrode Thickness:Curved:0.3mm
	SCForceps0200-4	Handle Shape:Straight;Electrode Length:200mm; Electrode Thickness:Curved:0.7mm

Items	Model	Description
Foot Switch	SJ-B03	Accessories
Cart	SPCART	Accessories
