Multiple Electrode Ablation Synchrony

Dophi™ R150E
Система радиочастотной абляции

With advanced precision and three-electrode ablation capacity, intelligent impedance monitoring algorithm, and full-electrode water cooling design, Dophi™ R150E RF Ablation System enables large and precise ablation zone even in the most challenging tissues. In addition to conventional 17G, 19G electrodes are also available primarily for thyroid ablation.

Document

Three-Electrode Simultaneous Ablation For Larger
Ablation Area In Shorter Time

Three-Electrode Ablation Synchrony
Needle for Irregular Large Tumors with More Controllable Ablation Shape
Smart Impedance Monitoring Algorithm
Excellent Water Cooling Technology for Minimal Tissue Carbonization
Slick and Simple User Interface for Easy Operation

17G & 19G Electrodes For Broad Clinical Needs

Thinnest 19G Electrodes, Better Choice for Tumors in Superficial Location
Triangular-Shaped Needle Tip for Secure Insertion, Less Bleeding and Better Image Clarity
A Variety of Electrode Types for Different Clinical Needs
Ergonomic Handle Design for Comfort Operation

Excellent Performance of Dophi™ R150E

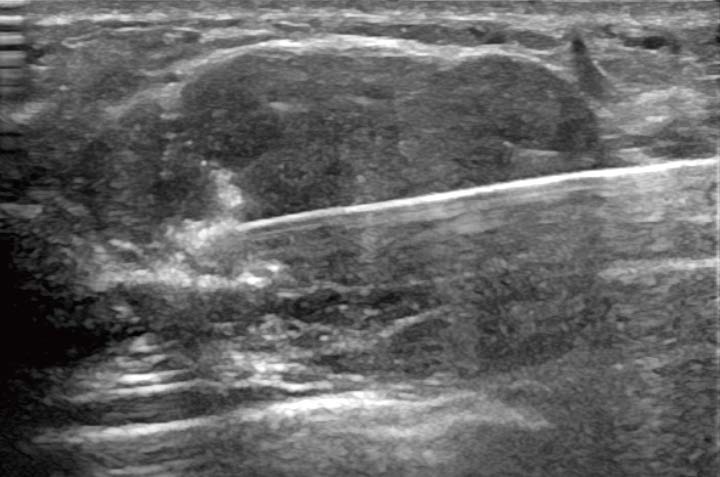

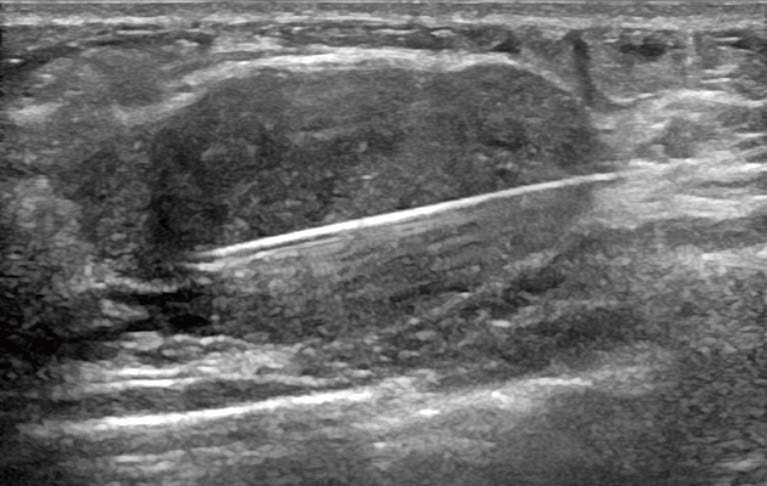

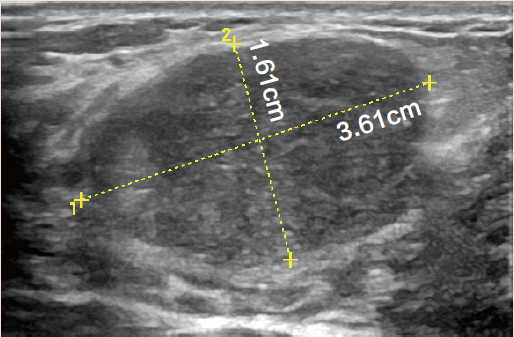

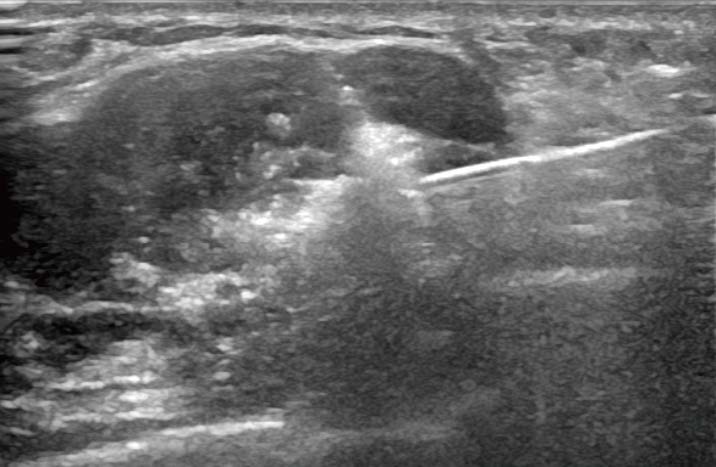

Dophi ™ R150E Performance in Moving Ablation on Breast Nodules

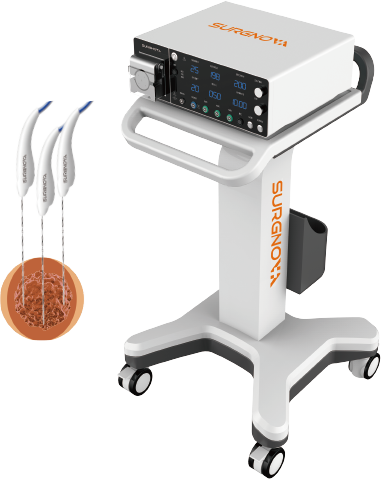

Radiofrequency Ablation System Generator Radiofrequency Ablation System Electrode Accessories

Items	Model	Description
Radiofrequency Ablation System Generator	R150E	Length:450mm Width:430mm Height:170mm

Dophi ™ R150E Electrode	Outside diameter	Length	Exposure
SS-RFAS1-1510	17G	15cm	10mm
SS-RFAS1-1520	17G	15cm	20mm
SS-RFAS1-1530	17G	15cm	30mm
SS-RFAS1-2010	17G	20cm	10mm
SS-RFAS1-2020	17G	20cm	20mm
SS-RFAS1-2030	17G	20cm	30mm
SS-RFAS1-2040	17G	20cm	40mm
SS-RFAS1-2510	17G	25cm	10mm
SS-RFAS1-2520	17G	25cm	20mm
SS-RFAS1-2530	17G	25cm	30mm
SS-RFAS1-2540	17G	25cm	40mm
SS-RFAS2-0705	19G	7cm	5mm
SS-RFAS2-0707	19G	7cm	7mm
SS-RFAS2-0710	19G	7cm	10mm
SS-RFAS2-0715	19G	7cm	15mm
SS-RFAS2-1510	19G	15cm	10mm
SS-RFAS2-1515	19G	15cm	15mm
SS-RFAS2-1520	19G	15cm	20mm
SS-RFAS2-1007^*	19G	10cm	7mm
SS-RFAS2-1010^*	19G	10cm	10mm
SS-RFAS2-1530^*	19G	15cm	30mm
SS-RFAS1-1020^*	17G	10cm	20mm
SS-RFAS1-1030^*	17G	10cm	30mm
SS-RFAS1-1540^*	17G	15cm	40mm

*updating

Items	Model	Description
Foot Switch	SJ-A01	Accessories
Cart	SPCART	Accessories
