Brilliant 3D World, DeepEye™ Opens for You
DeepEye™ EVS200
3D Video Endoscopy System
DeepEye™ 3D Video Endoscopy System is designed to deliver real 3D perception with two independent CMOS sensors. Powered with unique Fog-proof technology, DeepEye™ significantly shortens operation time, enhances procedure precision and safety. Meanwhile, the integrated system offers more operation convenience, saving space and cost effectiveness.
Document
Brilliant 3D World, DeepEye™ Opens For You
  • Unique Fog-Proof Function

  • Real 3D Technology With Rich Depth Perception,Full HD Image In Both 2D and 3D Perception

  • 3X Digital Zoom with Image Enhancement Algorithm

  • Built-in Video Recording and Picture Capturing

  • Built-in Light Source, No External Light Source and Fiber Cable

One-Key Switch Mode, Simple to Use
  • Unique Fog-proof Function

  • Easy Switch Between 3D and 2D Modes

  • All System Functions Are Controlled with Laparoscope Handle

  • Ergonomic Design of Handle for Easy Operation

GVS200 Gas Insufflator
  • Gas Heating Function

  • Maximum 40L/Min Inflation Speed

  • Full Touch Screen Design

  • Gas Overpressure Protection Function

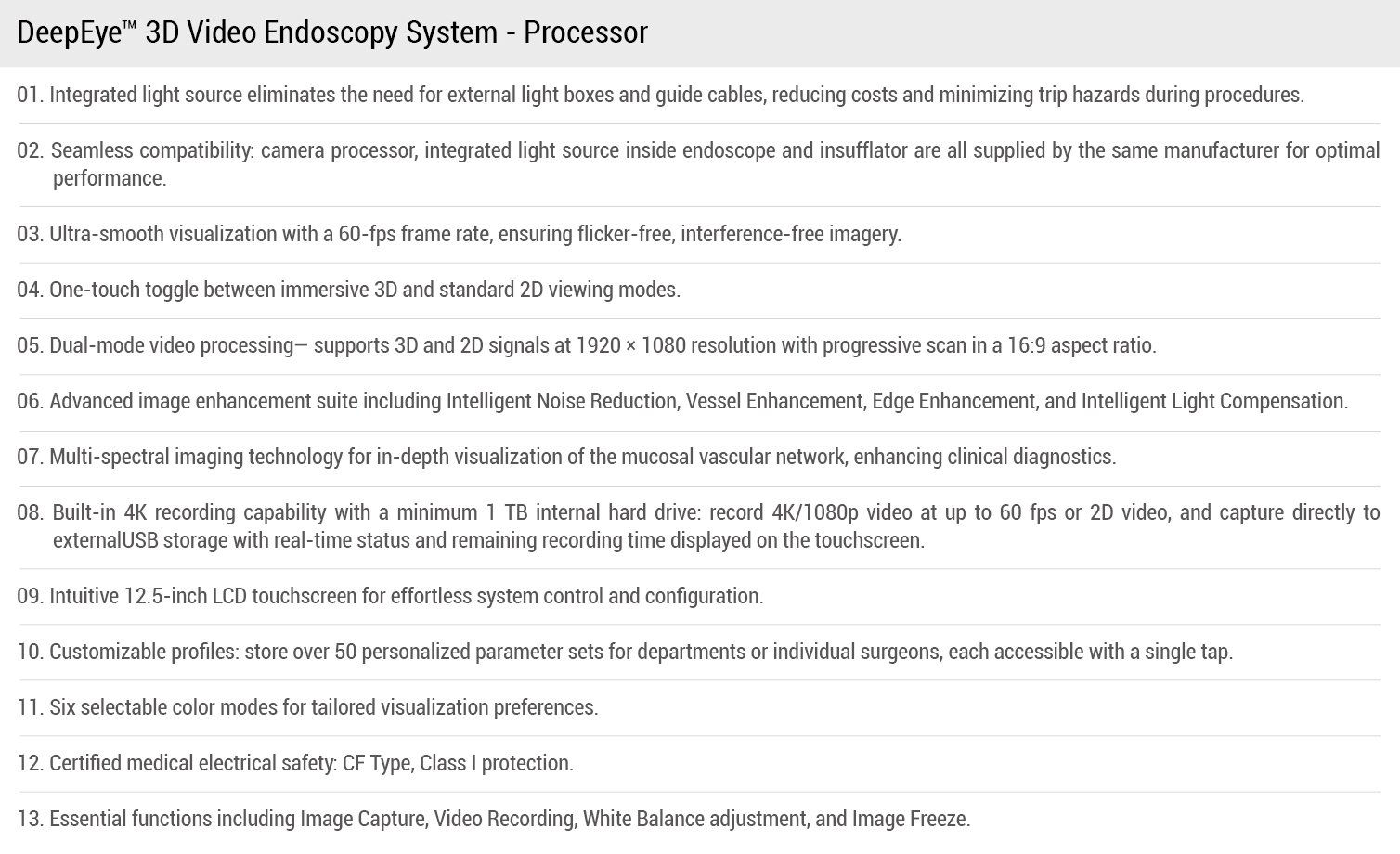

ItemsVideo Endoscopy Processor (Camera Control Unit)
ModelEVS200
Product Appearance DescriptionSize: L430mm*W425mm*H180mm
Net Weight: 10.5kg
RevolutionFull HD 1920*1080P
Video Output Port2X DisplayPort, 1X  HDMI, 2X DVI-D
Control Port2X USB for Keyboard and Mouse, 1X RJ45 Ethernet
Built-in StorageUp to 100 Hours Full HD Video Recording
Frame rate60FPS

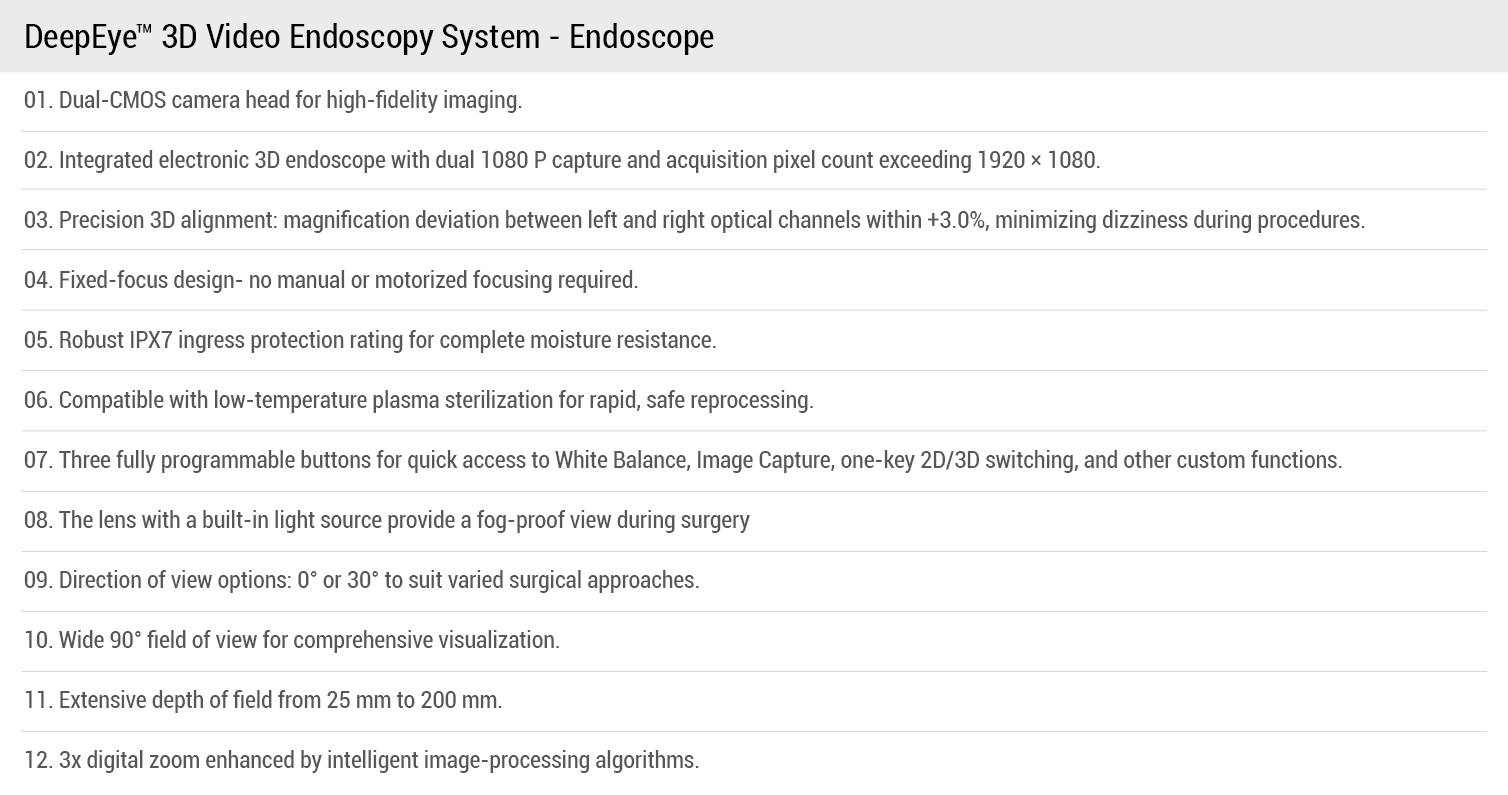

ItemsEndoscope
ModelLPS31000LPS31030
Maximum insertion portion width10mm10mm
Working length338mm340mm
Direction of view30°
Field angle91°Diagonal85°Diagonal
Depth of field20-120mm20-120mm
Sterilization WayExhaust steam sterilizationExhaust steam sterilization


ItemsGas Insufflator
ModelGVS200

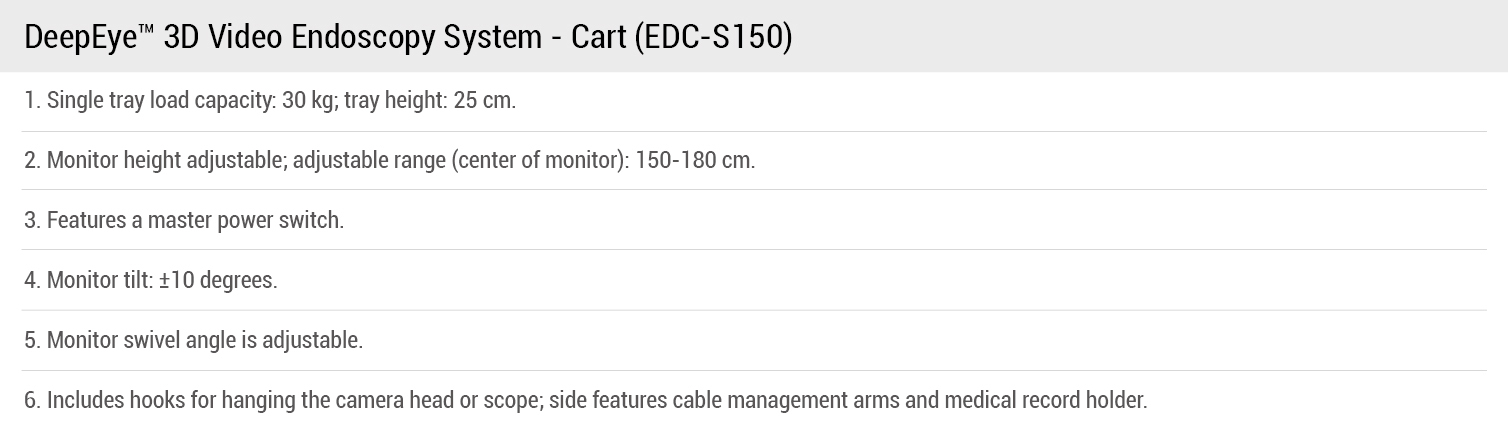

ItemsModel
CartMpcart
